2026 Polaris Ranger 500 Top Features and Specs ~ Designed for dependable performance and flexible use—making outdoor tasks simpler.
2026 POLARIS RANGER 500 TOP FEATURES
Extra Pulling Power Tackle downed trees and stubborn stumps with the muscle of a factory‑installed 2,500‑lb winch.
Haul More. Work Less. The built‑in 2″ hitch handles up to 1,500 lbs so you can shift brush and landscaping supplies in fewer runs.
Load. Lock. Let’s Go Tow up to 1,500 lbs like it’s nothing and keep the workday rolling.
Gas‑Assist Dump Box Make fewer trips with the gas-assist dump box. It can haul up to 300 lbs., approximately 10 bags of dry mulch.
Fun & Efficient Cruise around your property… Maximize fun and efficiency, with a 28-hp engine that helps you navigate your property and other quick and easily.
Conveniently Sized Easily store and navigate your small spaces with a narrow 58.5” width
Easy On The Lawn Selectable turf mode unlocks the rear differential – enabling easier and tighter turns that wont tear up the grass
Room For The Essentials Grab what you need, when you need it. Convenient interior storage makes it easy to bring and access essentials such as your phone, beverages and small tools.
2026 POLARIS RANGER 500 HIGHLIGHTED SPECS
Engine Type: 4-stroke single cylinder DOHC
Fuel System: Electronic fuel injection
Horsepower: 28
Transmission/Final Drive: Automatic PVT H/L/N/R/P; shaft
DIMENSIONS:
Bed Box Dimensions: 32.6 x 46.2 x 11.25″ (82.7 x 117.3 x 28.6 cm)
Box Capacity: 300 lbs. (136 kg)
Curb Weight: 1,210 lbs. (549 kg)
Estimated Dry Weight: 1,155 lbs. (524 kg)
Fuel Capacity: 9.5 gal (35.9 L)
Ground Clearance: 10″ (25.4 cm)
Towing Capacity: 1,500 lbs. (680 kg)
Hitch Type: Standard 2″ (5 cm) receiver
Overall Vehicle Size (L x W x H): 110 x 58.5 x 74.8″ (279.4 x 148.6 x 190 cm)
Person Capacity: 2
Wheelbase: 73.2″ (186 cm)
Turning Radius: 13.5′ (4.2 m)
SUSPENSION:
Front Suspension: MacPherson strut, 9″ (22.9 cm) travel
Rear Suspension: Dual A-arm, IRS, 10″ (25.4 cm) travel
TIRES/BRAKES:
Front Tires: 25 x 8-12; Carlisle 489
Rear Tires: 25 x 10-12; Carlisle 489
Tire Ply Rating: —-
Front/Rear Brakes: 4-wheel hydraulic disc
Parking Brake: Not equipped, accessory options available
TECHNOLOGY:
Audio System: Not equipped
Connected Vehicle Services: Not equipped
Technology: Not equipped
Rear Camera: Not equipped
Security: Not equipped
ADDITIONAL FEATURES

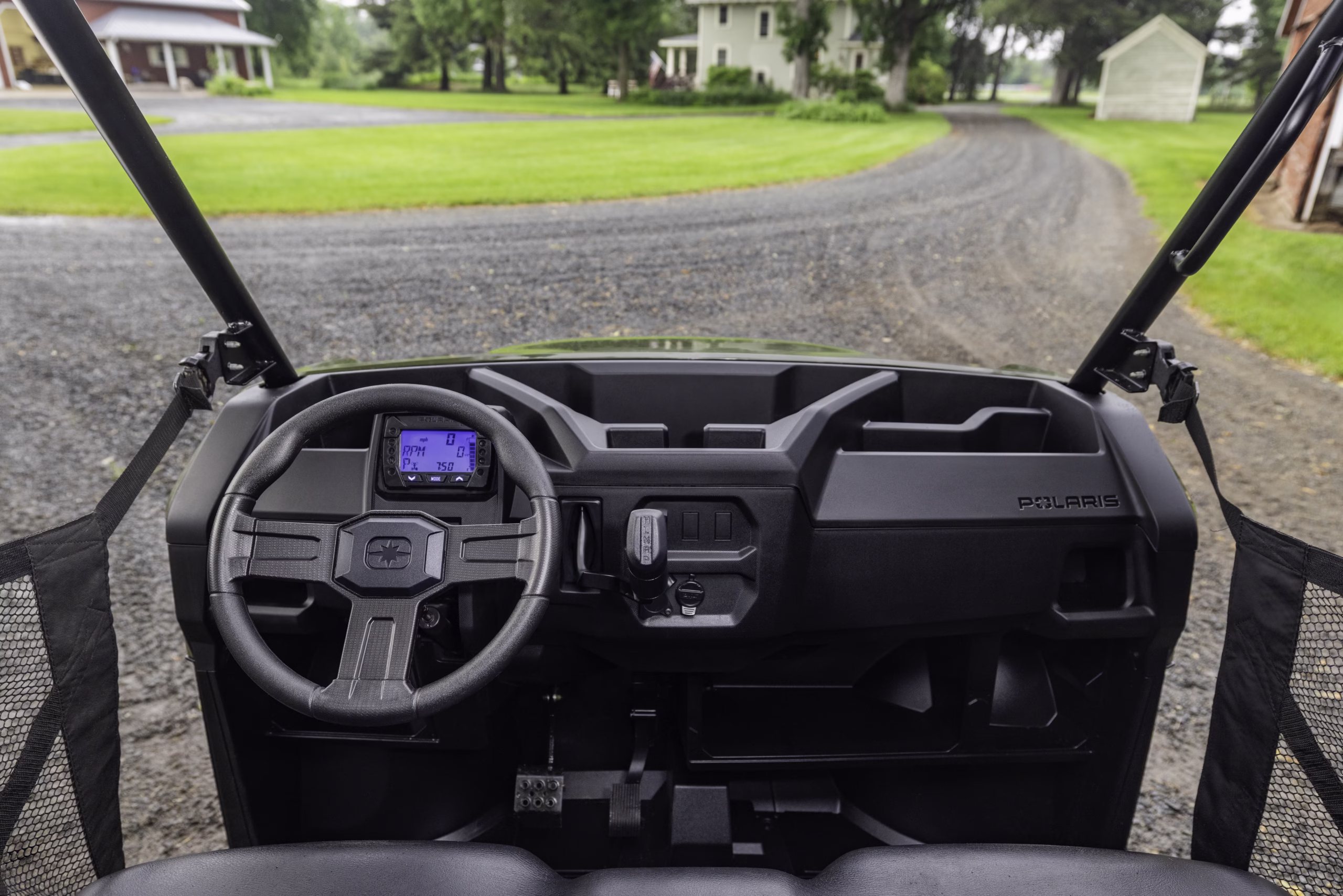

Driver Instrumentation: 4″ LCD rider information center: user-selectable blue/red backlighting and brightness, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder
Seat Type: 2-person, flip-up bench seat with 3-point harness
Steering: Tilt adjustment
Cab Components: Not equipped, accessory options available
Heat and/or Air Conditioning: Not equipped
Speed Limiting: Not equipped, accessory options available
LIGHTING/ELECTRICAL:
Lighting: LED headlights
Electrical System: DC outlet, standard in-dash SAE charge port, USB charging port, 660-W stator charging system, Polaris PULSE electrical system (3-position)
Winch: Not equipped, accessory options available
Vehicle Protection: Full-coverage skid plate, A-arm guards
Cab Nets: Cab nets
Cargo System: Gas-assist dump box with Lock & Ride accessory integration
Warranty: 1-year warranty
ALSO SEE: 2026 Polaris RANGERS, 2026 Polaris GENERALS and 2026 Polaris EXPEDITIONS
