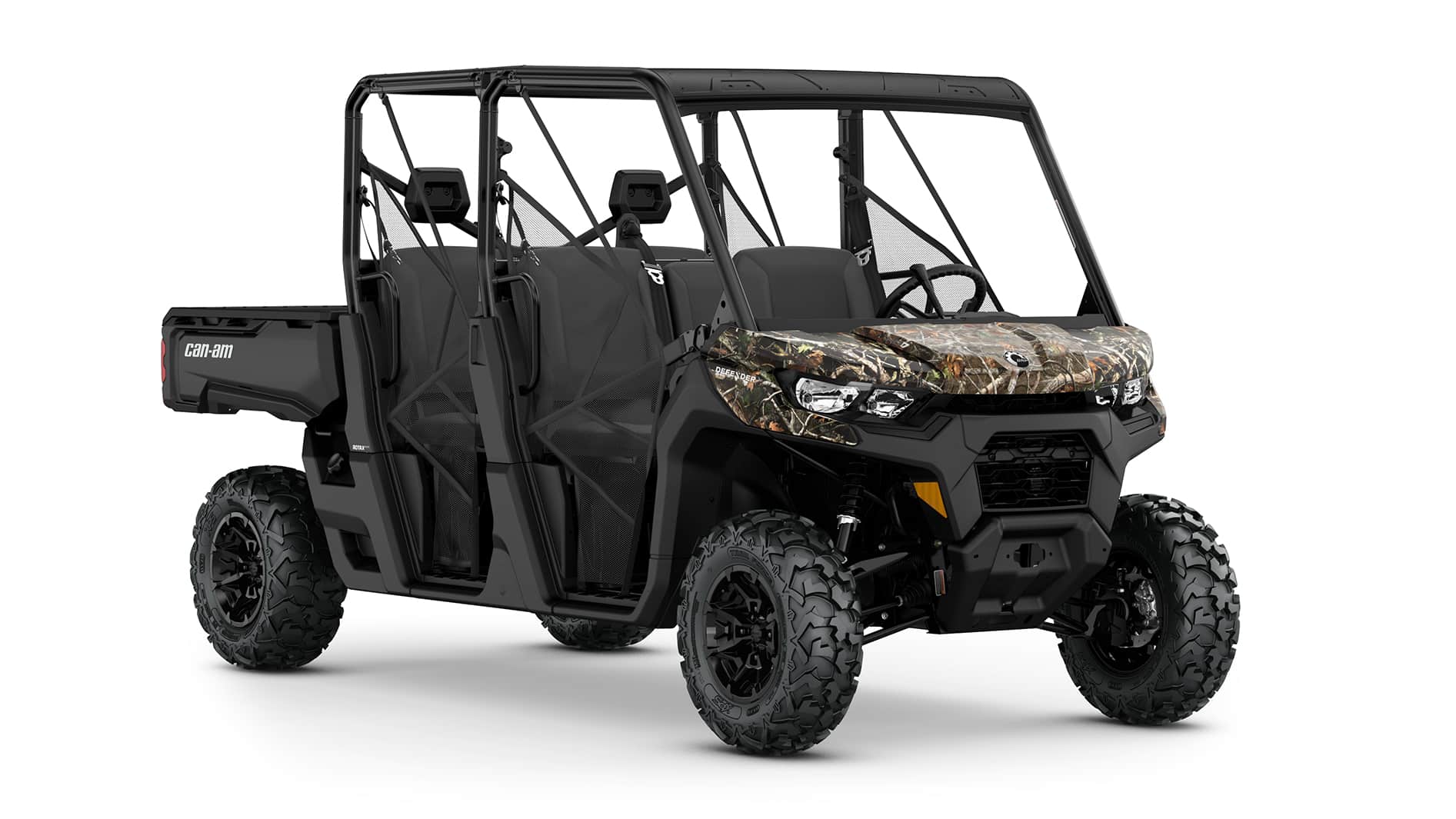

The 2026 Can-Am Defender MAX HD7 specs highlight a four-seat utility side-by-side built on the Defender HD7 platform. Powered by a 650 cc Rotax ACE engine producing 52 horsepower, the MAX configuration extends the wheelbase to accommodate additional passenger capacity while maintaining work-focused capability.
Below is a complete breakdown of specifications, trims, pricing, and configuration details.
If you prefer a shorter two-seat configuration, explore our complete 2026 Can-Am Defender HD7 specs breakdown for full specifications and trim details.
Engine & Performance
-
Engine: 650 cc Rotax ACE single-cylinder
-
Horsepower: 52 hp
-
Drive System: Selectable Turf Mode / 2WD / 4WD with Visco-Lok auto-locking front differential (QE on DPS trims)
-
Fuel Capacity: 10.6 gallons
The Defender MAX HD7 retains Can-Amโs pDrive CVT with engine braking and selectable ECO, ECO Off, and Work modes.
Chassis & Dimensions
-
Wheelbase: 115.5 inches
-
Ground Clearance: 11 inches
-
Front Suspension: Double A-arm / 10 inches travel
-
Rear Suspension: TTA with external sway bar / 10 inches travel
-
Dry Weight: 1,757โ1,772 lbs (varies by trim)
The extended wheelbase provides increased passenger capacity and improved ride stability.
2026 Defender MAX HD7 Trim Levels
Defender MAX HD7
-
MSRP: $15,799
-

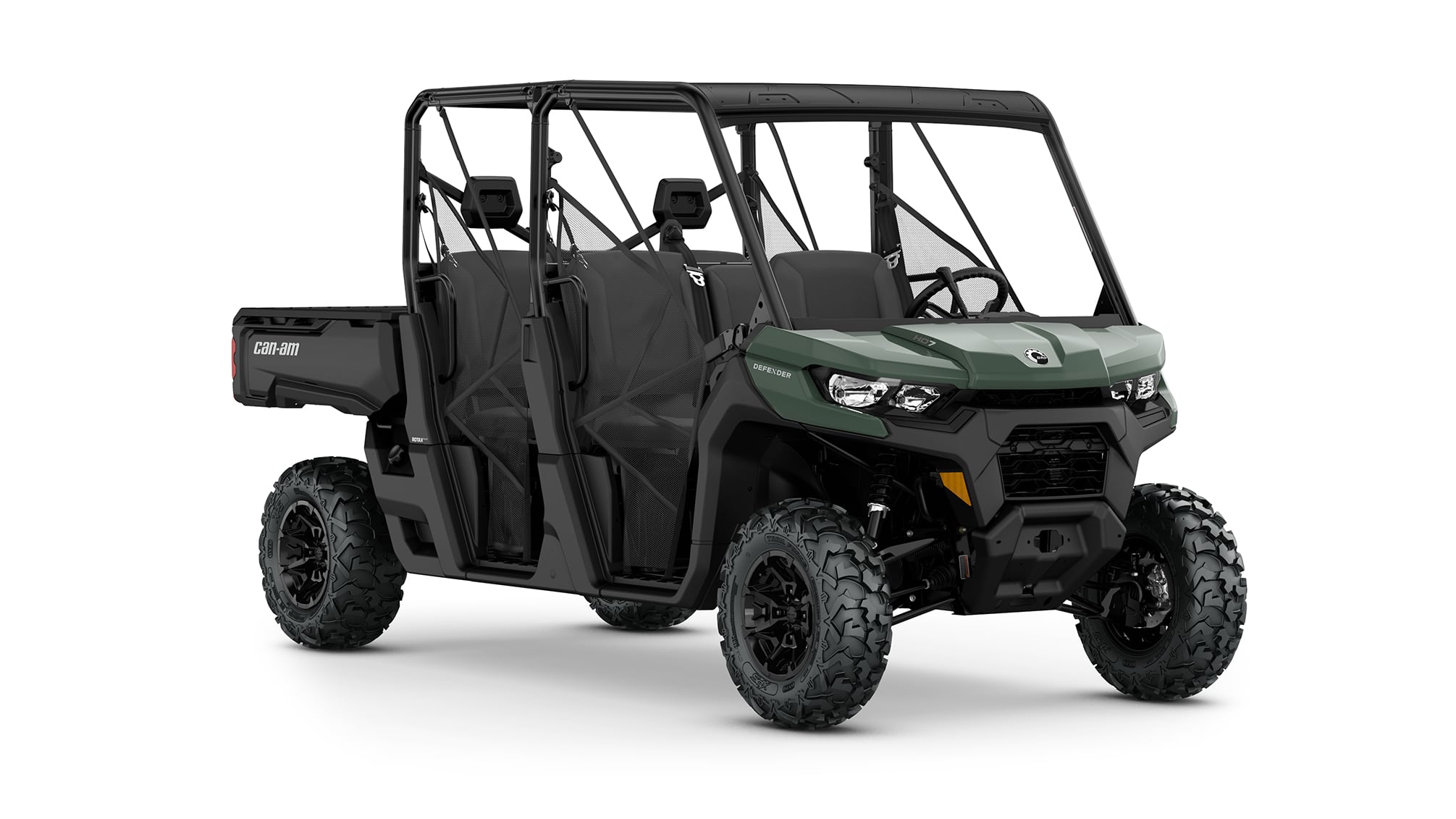

Compass Green
-
VERSA-PRO bench seat
-
4.5-inch digital display
Defender MAX DPS HD7
-
MSRP: $17,399
-
Adds Dynamic Power Steering
-
Cast-aluminum wheels
-
Electronic Drive Belt Protection
Who Should Buy the Defender MAX HD7?
The Defender MAX HD7 is ideal for:
-
Families and work crews
-
Property owners needing four-passenger capacity
-
Utility-focused buyers who need extended seating
If you prefer a shorter two-seat configuration, explore our full 2026 Can-Am Defender HD7 specs breakdown.
For a full overview of Can-Amโs 2026 lineup, visit our 2026 Can-Am UTV Buyerโs Guide.
